ThermTrace® Constant
PARALLEL CONSTANT POWER HEATING TAPE
Properties of heating tape
• Connection at one end
• Cut-to-length
• Constant loading
• Highly flexible
• High temperature withstand
Technical data
Maximum exposure temperature (unpowered): 225°C
Nominal voltage: 230V
Min. bending radius: 25mm
Min. installation temperature: -60°C
Buswires: tinned copper
Applications
The ThermTrace Constant is a construction, and industrial grade parallel constant wattage heating tape. It has especially been designed for frost protection and temperature maintenance of pipes, gutters and tanks aswell as for use in refrigeration applications.
Properties of heating tape
| Name |
Max. |
Zone length |
Dimensions |
Max. operating temperature |
|
10TTC-2 |
200m | 1m | 10.0 x 5.9 | 180°C |
|
15TTC-2 |
140m | 1m | 10.0 x 5.9 | 170°C |
| 20TTC-2 | 130m | 1m | 10.0 x 5.9 | 150°C |
| 30TTC-2 | 115m | 1m | 10.0 x 5.9 | 135°C |
| 40TTC-2 | 100m | 1m | 10.0 x 5.9 | 110°C |
| 50TTC-2 | 85m | 1m | 10.0 x 5.9 | 95°C |
| 60TTC-2 | 70m | 1m | 10.0 x 5.9 | 70°C |
| 10TTC-2-BO | 200m | 1m | 12.5 x 8.8 | 180°C |
| 15TTC-2-BO | 140m | 1m | 12.5 x 8.8 | 170°C |
| 20TTC-2-BO | 130m | 1m | 12.5 x 8.8 | 150°C |
| 30TTC-2-BO | 115m | 1m | 12.5 x 8.8 | 135°C |
| 40TTC-2-BO | 100m | 1m | 12.5 x 8.8 | 110°C |
| 50TTC-2-BO | 85m | 1m | 12.5 x 8.8 | 95°C |
| 60TTC-2-BO | 70m | 1m | 12.5 x 8.8 | 70°C |
Other wattages and voltages can be manufactured to order
Product ordering information:

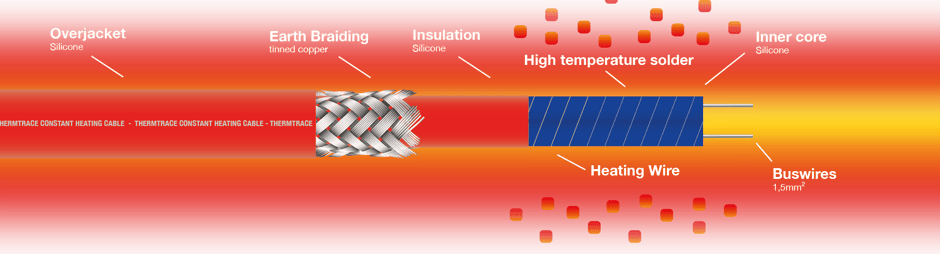

TTC-2: Cable with first insulation only
TTC-2-BO: Cable with protective braid and silicone overjacket
